Modular Design
Compact Design
Safety Design
Independent Design

DESCRIPTIONStandard modulus production can ensure stability quality of the product and shorten the delivery period

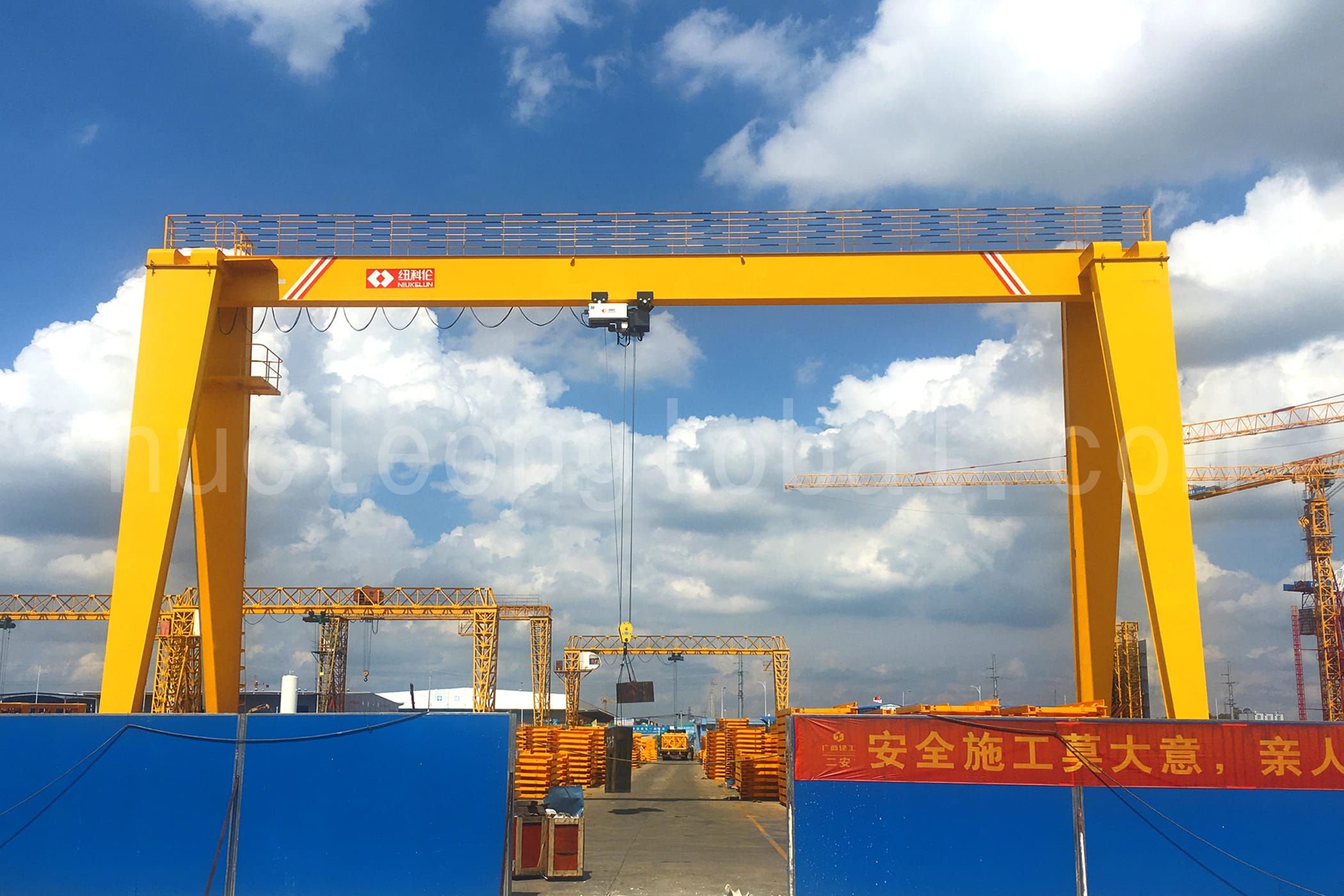

Gantry Crane is widely used outdoor on the big work yard to lift material. There is no need to install the steel stand column; therefore, gantry crane will not occupy too much ground space.

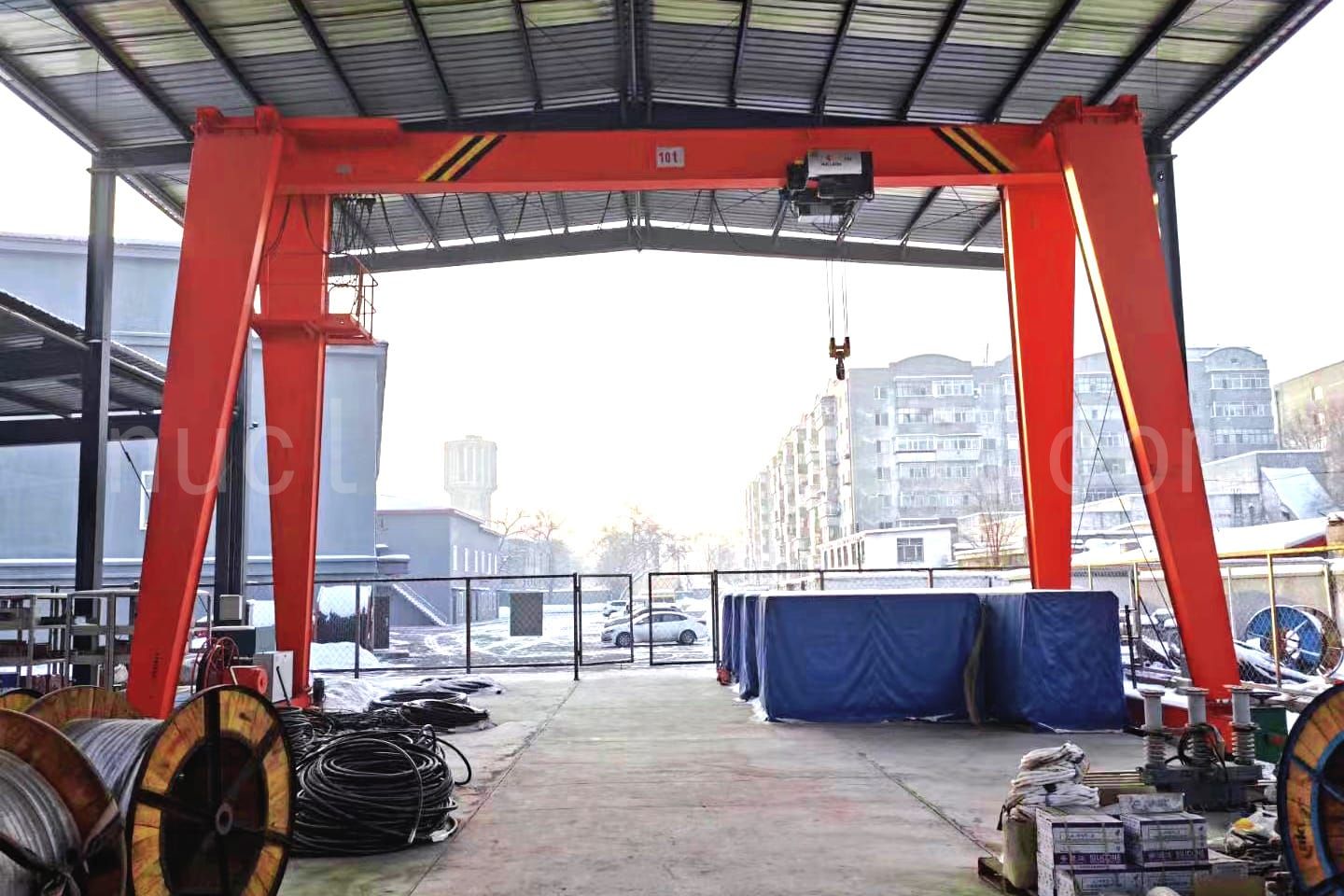

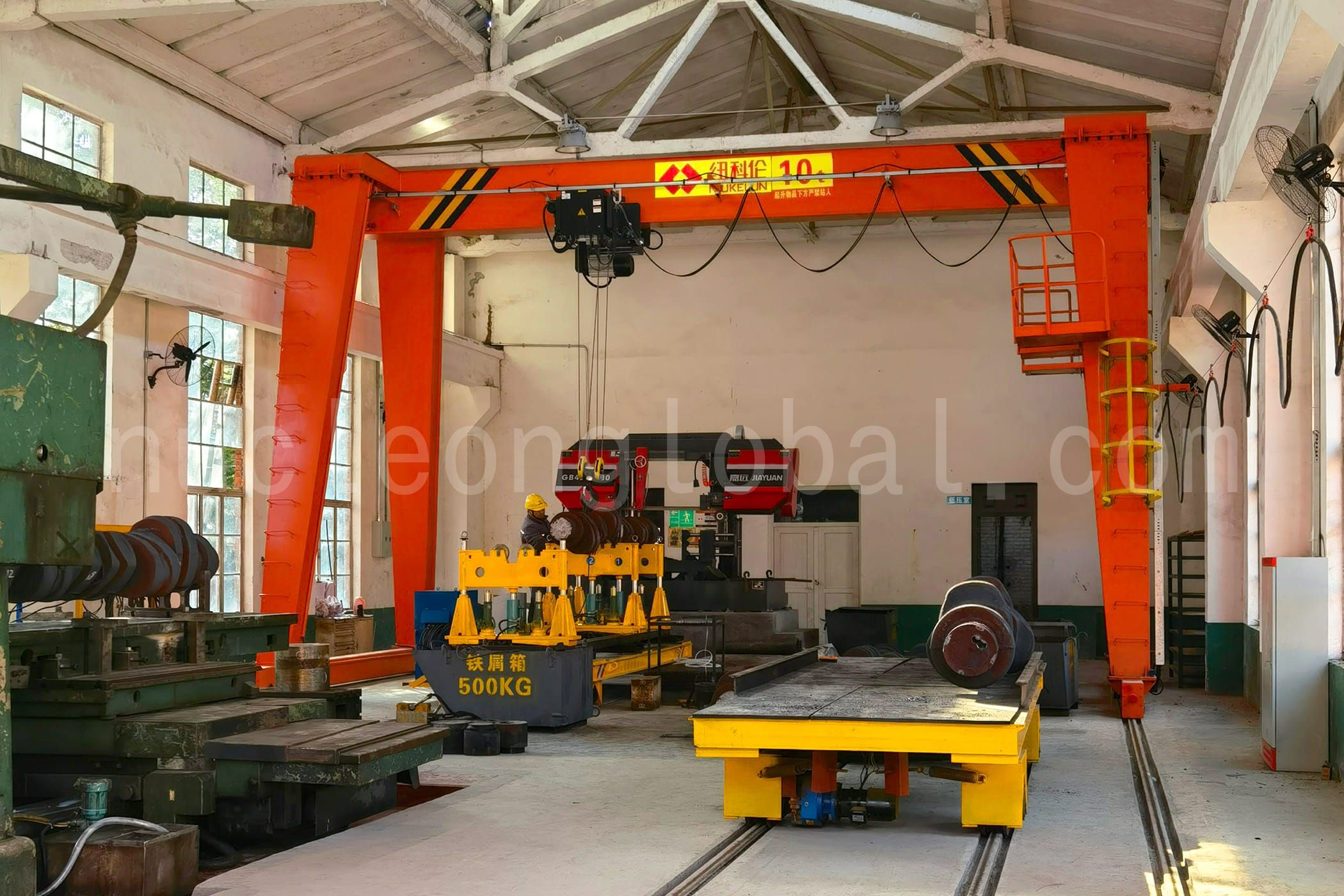

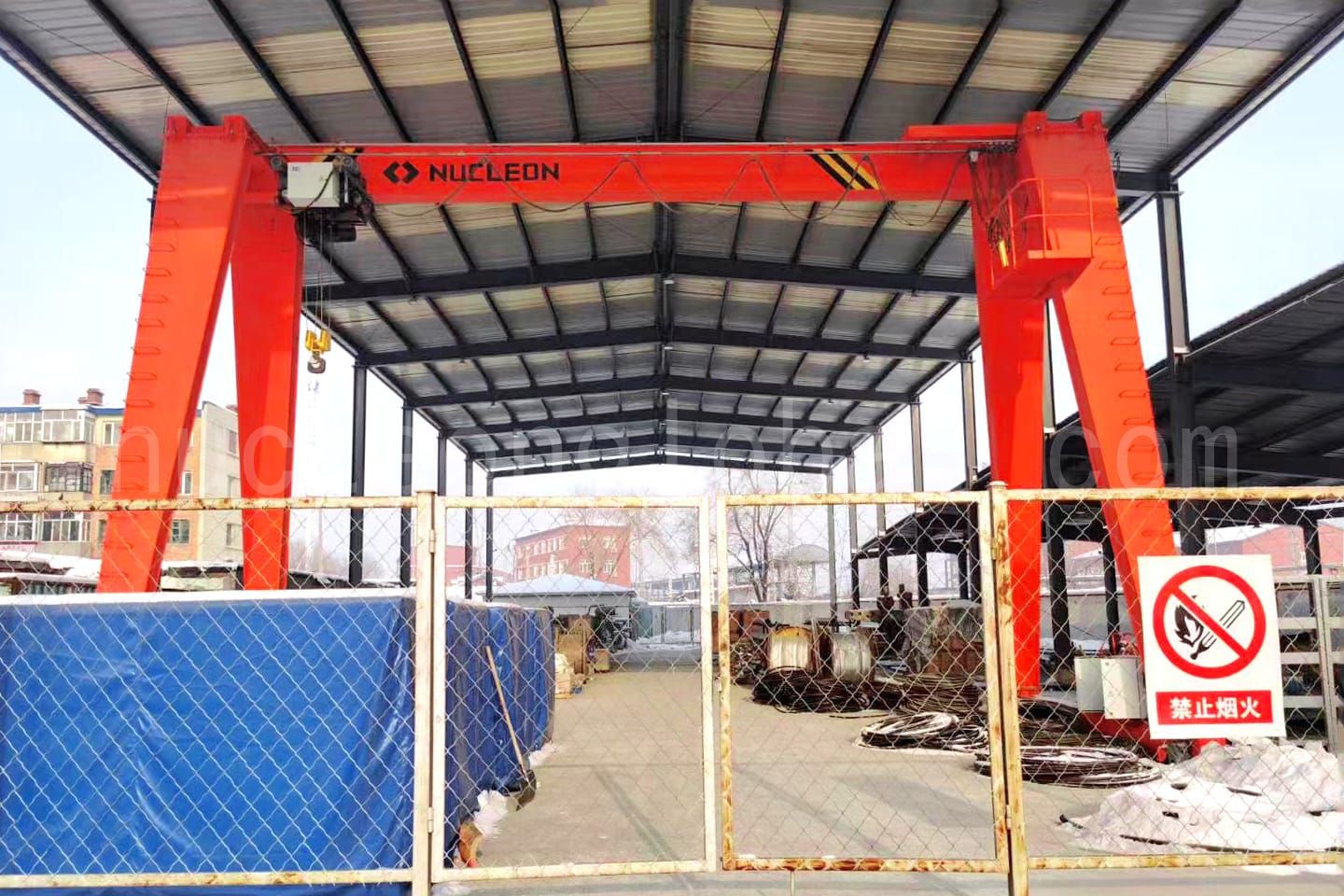

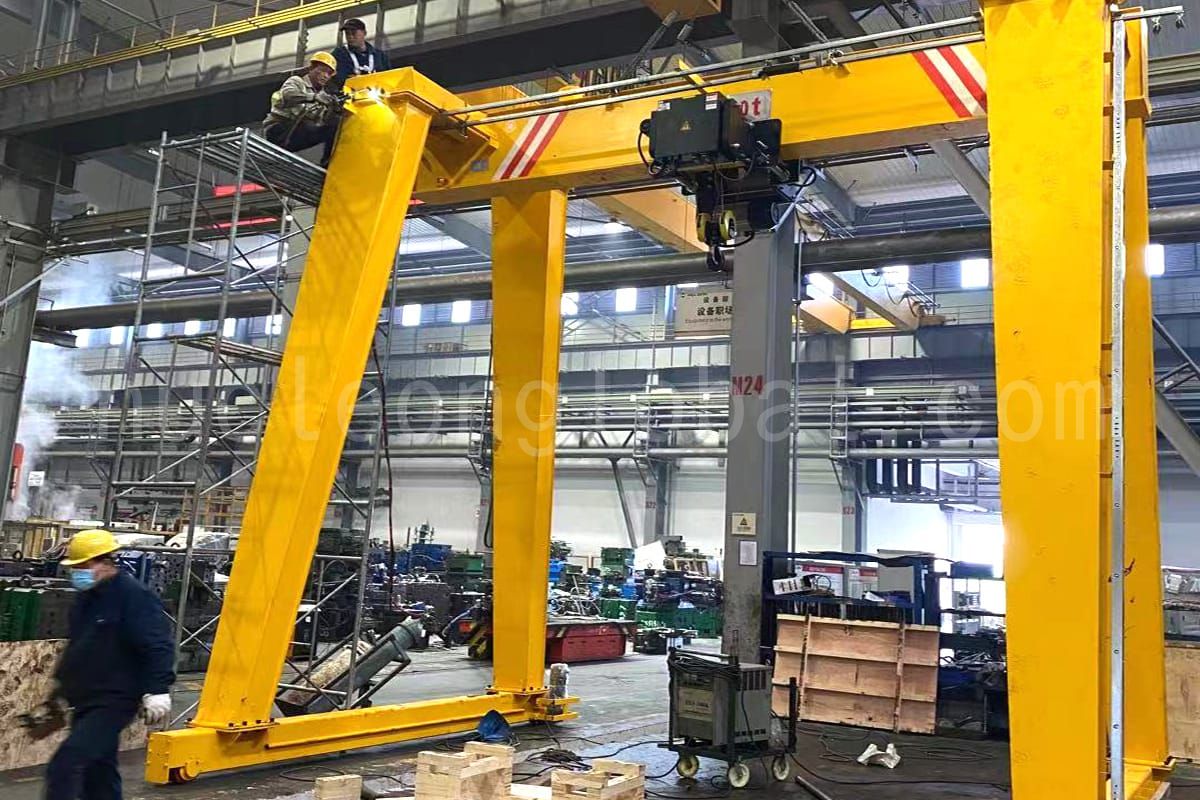

Single girder gantry crane (hoist mode) adopts lightweight, modular and parametric design. Hoisting mechanism uses NR mode low headroom electric hoist with superior performance and advanced technology. Traveling mechanism of trolley is drove by three-in-one drive device and the control mechanism adopts the advanced variable frequency and speed regulation control system.

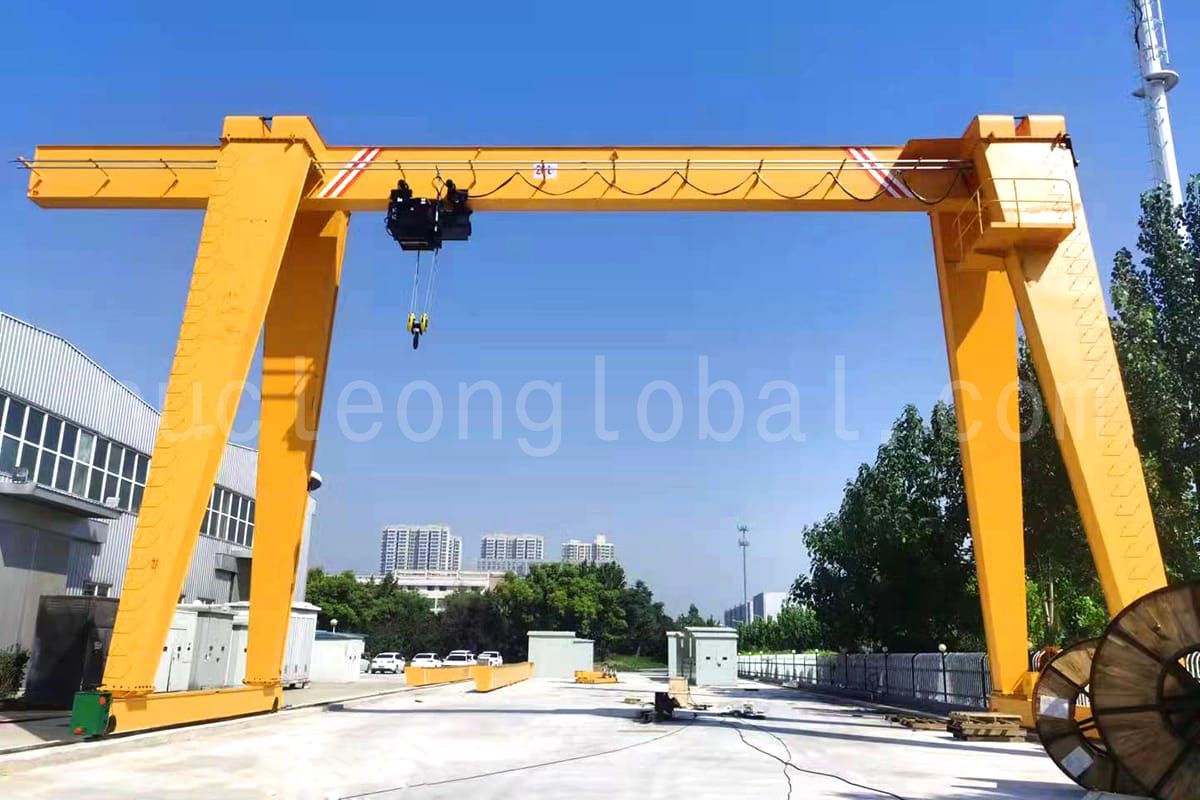

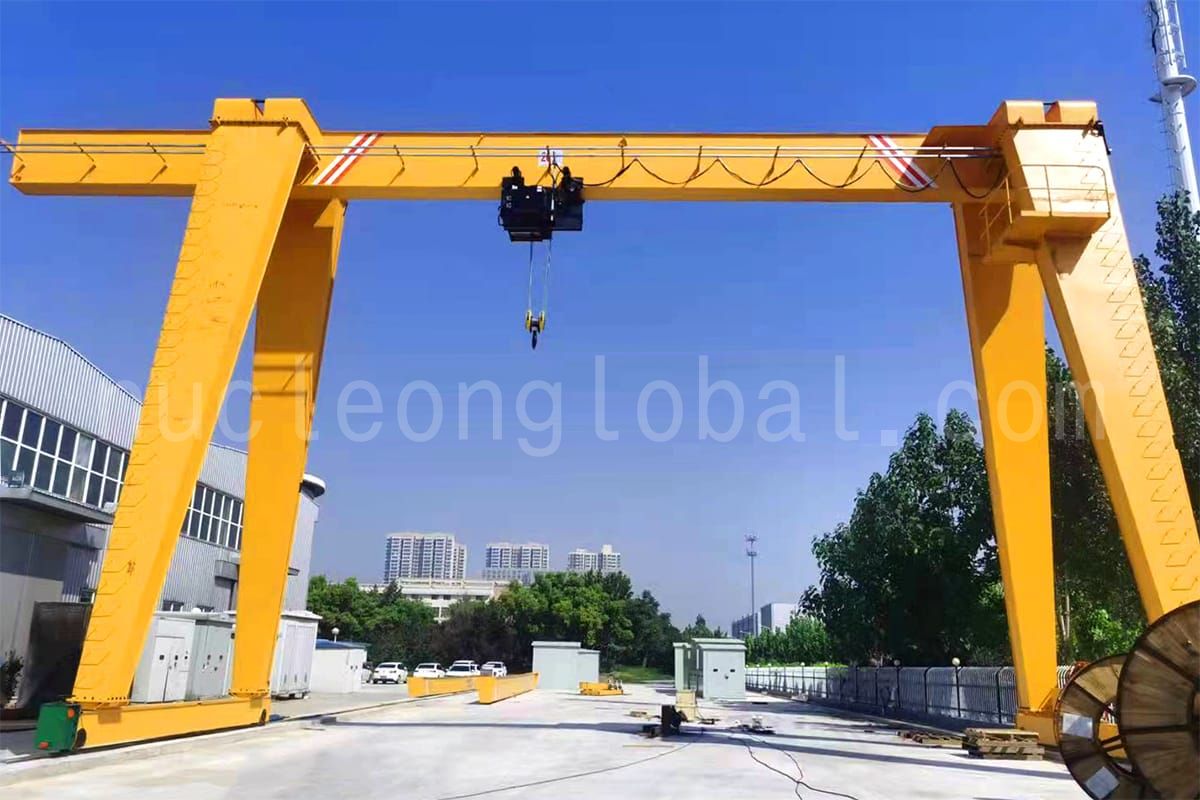

According to the jib type, it can be divided into non-jib, single-jib and double-jib. According to the operation mode, it is divided into ground operation, air operation and remote control operation.

PRODUCT FEATURESStandard production and shorten the delivery period

  • The small size of this crane can increase the working area.
  • With the lightness structure it can cut the construction costs.
  • Each spare parts on the crane are design to series standard modulus, which makes easy for the product combination.
  • The independent modulus is convenient for the transportation.
  • Standard modulus production can ensure stability quality of the product and shorten the delivery period.
  • Sandblasting pretreatment for the steel plate with surface quality reaching Sa2.5.

Product AdvantagesThe total power can be lower by 30% than that of the tradition crane

  • Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure.
  • Nor do they usually require concrete foundations.
  • Their installation is fast and simple.
  • Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.

Zero Speed Hover

Ensure that the crane moves slowly and accurately as it approaches its destination.


Electric Anti-sway Function

Can automatically limit the sway of the loader in the process of handling, faster handling and more accurate positioning.


Multi-hook Coordination

Monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed.


Dead Slow

Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading.


Multi-trolley Synchronization

Position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.


Speed Expansion Function

Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
