Project Background
A new customer contacted us while planning equipment for a factory still under construction. This was their first cooperation with us, and after evaluating multiple crane suppliers, they ultimately chose to work with our team. The decision was based not only on our technical proposal but also on the flexibility we showed during the planning phase and the confidence they had in our manufacturing quality.
Project Challenges
The project involved supplying two overhead cranes for a facility still being built. Key challenges included:
Adapting the crane specifications to fit the evolving structural dimensions of the new workshop.
Ensuring compatibility with a 60Hz power supply system.
Providing a user-friendly control solution for a multi-bay crane setup.
Solutions
To meet the customer's needs, we designed a solution using two HD series 10-ton single girder overhead cranes. As the construction progressed, we worked closely with the customer to adjust beam length and lifting height parameters in line with updated workshop drawings. For ease of operation and safety, the cranes were equipped with wireless remote control systems, eliminating the need for pendant lines on the ground.
Component Overview
Model: 10T HD Single Girder Overhead Crane
Capacity: 10 tons
Lifting Height: 6.94 meters
Span: 18.62 meters
Hoist Lifting Speed: 5/0.8 m/min (dual speed)
Power Supply: 380V, 60Hz, 3-phase
Control Mode: Remote control
Quantity: 2 sets

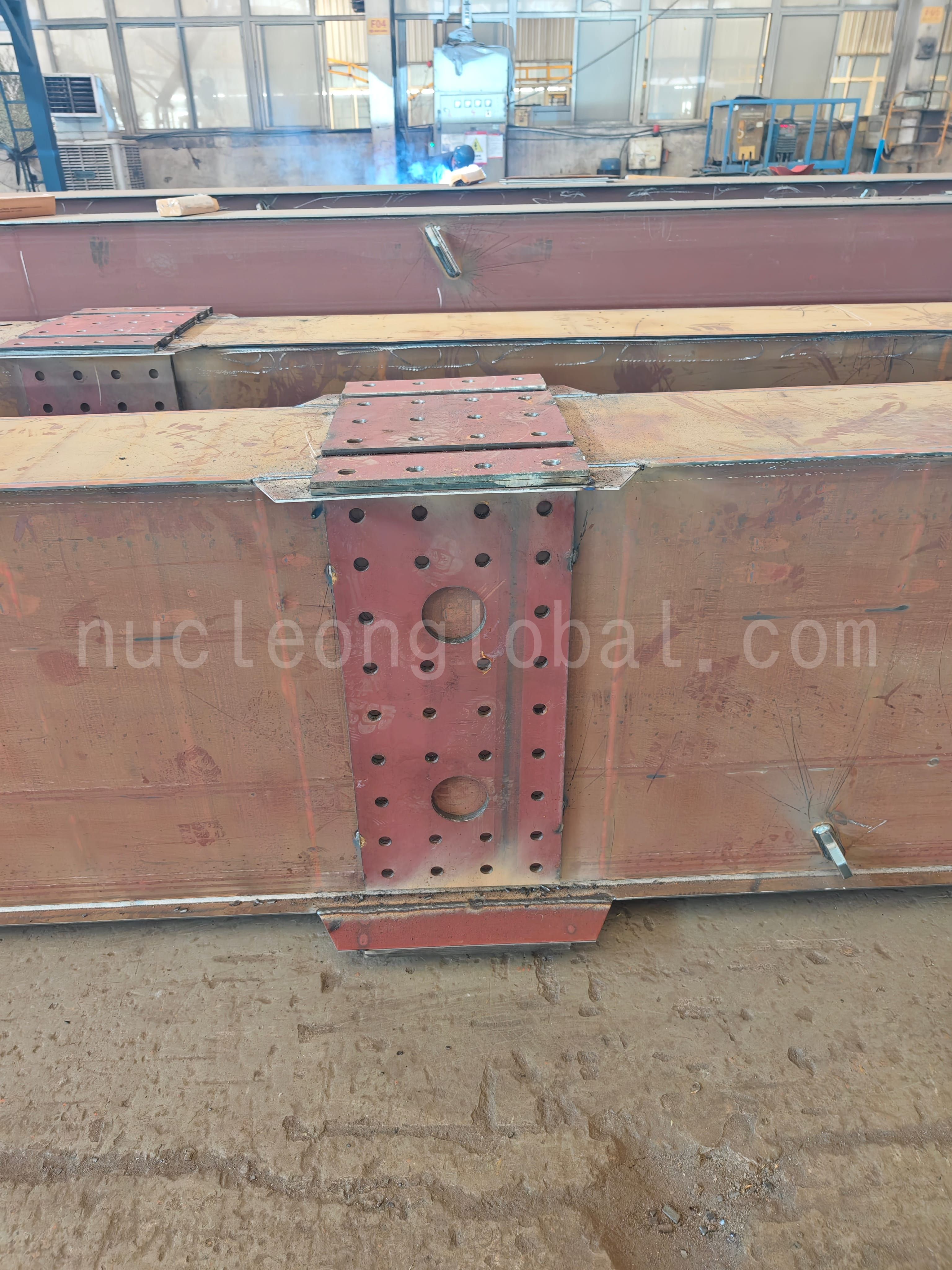

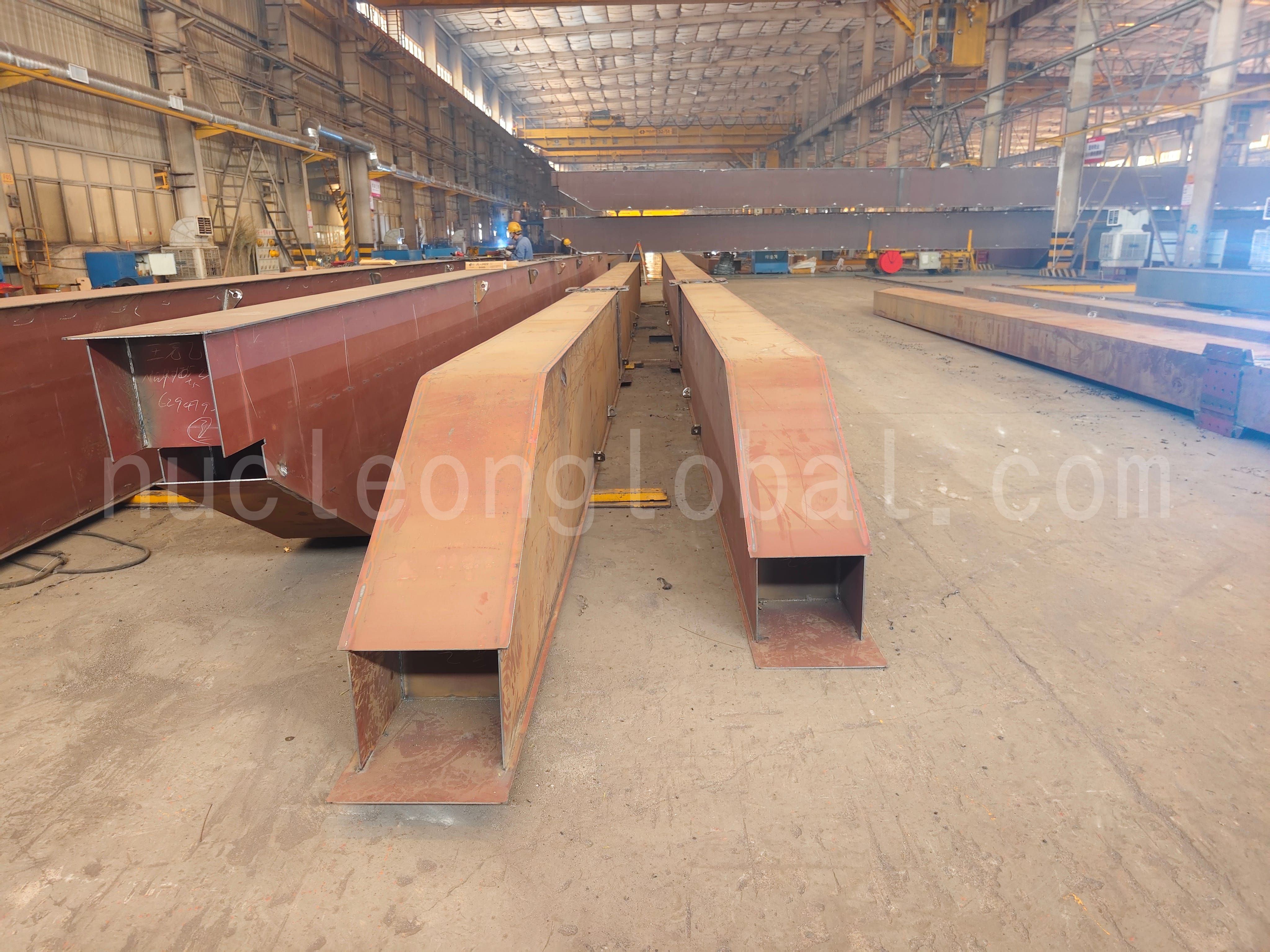

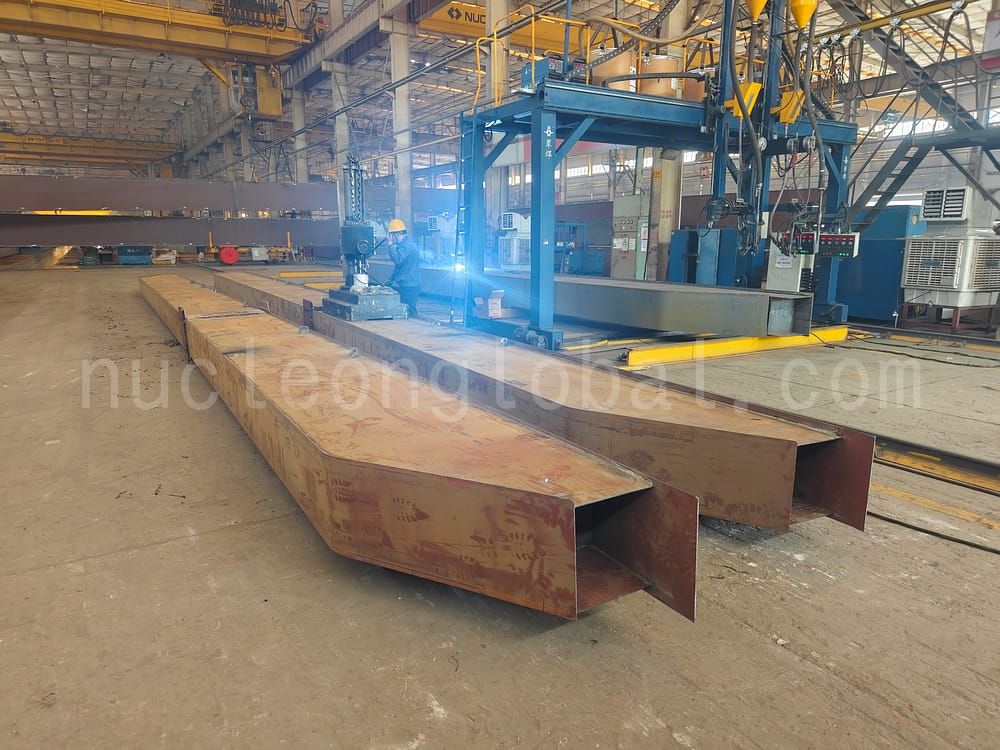

Each crane was built in-house with high-precision manufacturing processes and underwent full testing before delivery to ensure reliable long-term performance.
Delivery and Installation
The cranes have completed production and are now packed and ready for shipment. Installation support documents have been prepared and provided. Our team will offer remote technical assistance during on-site assembly and startup. The flexible design of the system ensures smooth integration into the customer's new facility.
Customer Feedback
Though it is our first cooperation, the customer quickly recognized the professionalism and attention to detail in our approach. They were especially satisfied with the way we adapted the plan based on updated construction data and appreciated the visible quality in every stage of production. The successful execution of this order has laid a positive foundation for potential future collaboration.
